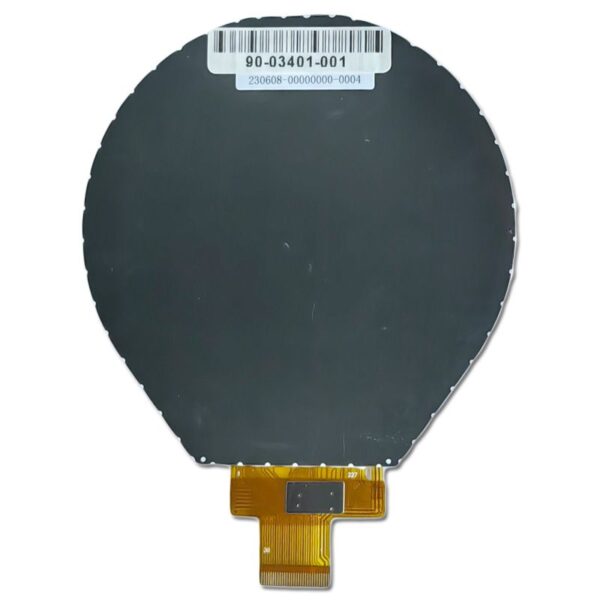

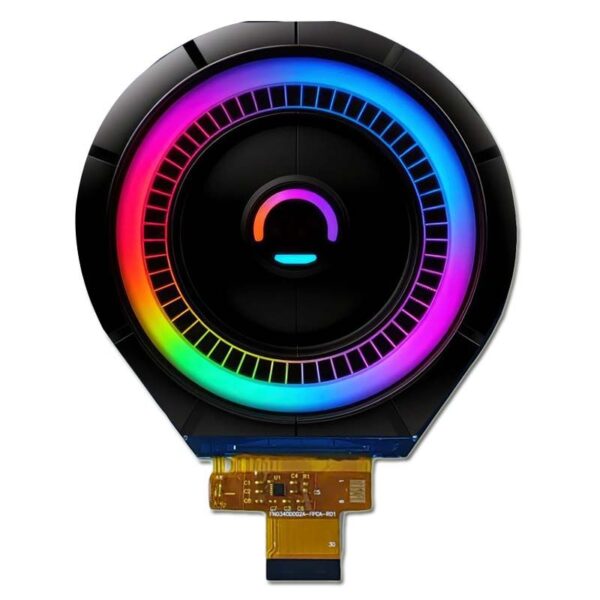

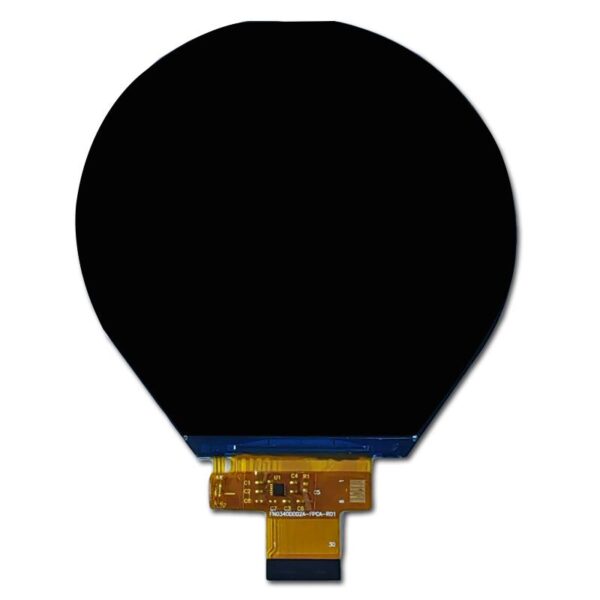

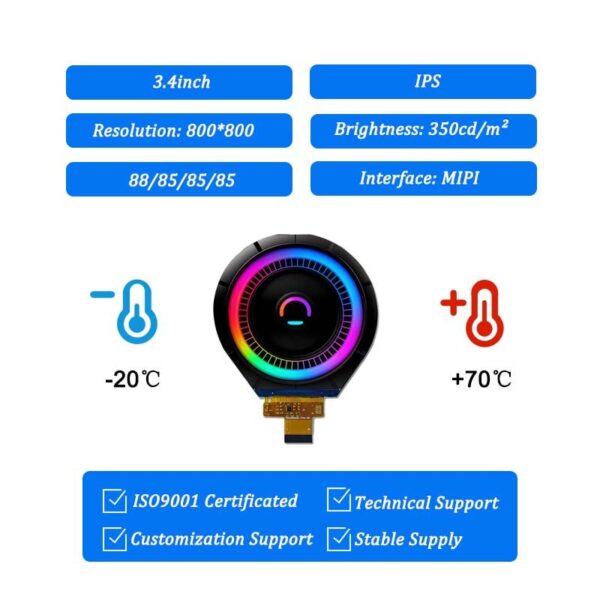

Description 3.4 inch Round LCD Panel Display Here are the key points about this 3.4 inch Round LCD Panel : Resolution: 800×800 pixels, providing stunning visuals Form Factor Advantage: Ideal for applications that benefit from a unique round shape Viewing Angle: 85° in all directions, ensuring consistent image quality and color accuracy from multiple perspectives, suitable for various environments Contrast Ratio: 1200, enhancing the clarity and vibrancy of displayed content, crucial for applications demanding precise visual output 3.4 inch MIPI LCD Display The 3.4-inch round TFT-LCD display module features a unique round shape that sets it apart, making it ideal for applications that require an eye-catching and modern design. This distinctive form factor enhances user experience by providing a visually appealing interface. Additionally, the module utilizes a MIPI interface with a 30-pin connection, ensuring seamless integration with modern microcontrollers and processors for efficient data transfer and communication, which is crucial for high-performance applications. 3.4″ TFT-LCD Product Specifications Model Number 90-03401-001 Operating Temperature -20~70 Size 3.4 Storage Temperature -30~80 Resolution 800*800 LED Lifetime 30000 Outline Dimension 94.9*96.95*2.18 Touchscreen Support Witout Active Area 87.6*87.6 Contrast Ratio 1200:01:00 Brightness(cd/m²) 350 Power Supply 3.3V Interface MIPI Displar Type Color LCD View Direction ALL Customizable Parts Display Cable We can adjust the length, position and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance. Customized glass and touch screen In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage. Contact us to get the best customized solution. Miqidisplay round LCD displays are mainly small-sized, available in 1.28 inch, 1.6 inch, 2.1 inch, 2.76 inch, 3.4 inch, and 4 inch . They feature high resolution, high brightness, and a wide operating temperature range, Optional customizable cover glass and touch panels. Widely used in consumer electronics, industrial control, and medical display applications. We provide comprehensive customization services: cable adjustments, capacitive/resistive touchscreen upgrades with custom glass, interface integration (HDMI, USB, etc.), connector modifications, PCB tweaks, cover glass additions, versatile mounting options, and custom backlights (voltage, brightness, color). Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours. Visual access control displays deliver high brightness, HD quality, and shape customization. Submit your project requirements via our form for a personalized solution within 48 hours.
