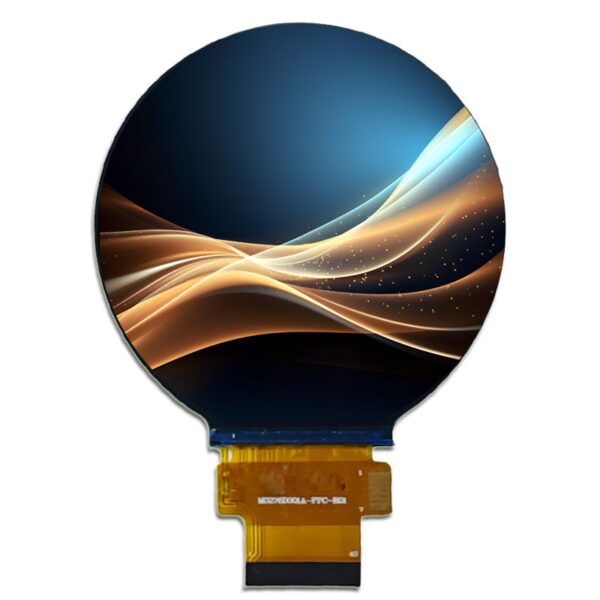

1080P 5 Inch Round Screen Circle Screen Roundness Circular Mipi Dsi Interface Round Lcd Display Screen Module Mipi

1 General Features Diagonal Size 5.0 inch Type LCM , TFT-LCD Pixel Format 1080(H) RGB*1080(V) (FHD) Configuration RGB Vertical Stripe Active Area 127.008 (H)*127.008 (V)mm,circle Outline Dim. 136.531*132.208*1.98mm,circle Luminance 400 cd/m² (Typ.) Contrast Ratio 1300:1 (Typ.) (TM) View Direction Symmetry Response Time 40 (Max.)ms (Tr Td) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode Normally Black, Transmissive Support Color 16.7M  70% NTSC Backlight WLED Weight TBD Designed For Industrial Application; Speedometer Frame Rate – Touch Panel without Interface Type Micro USB, 50 pin MIPI Power Supply 1.8/5.0/-5.0V (Typ.)(IOVCC/VDD/-VDD) Environment Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
